Use a Drive Data as input of a run

Select a DeltaTwin® component that requires a URL-type input

Click Run to open the Run Configuration page

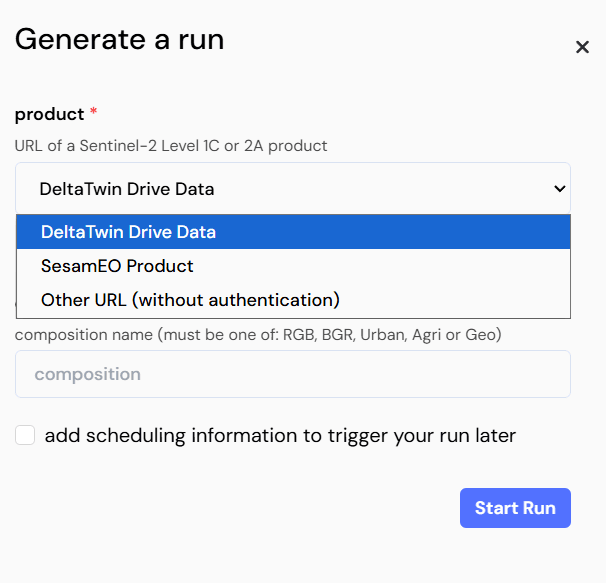

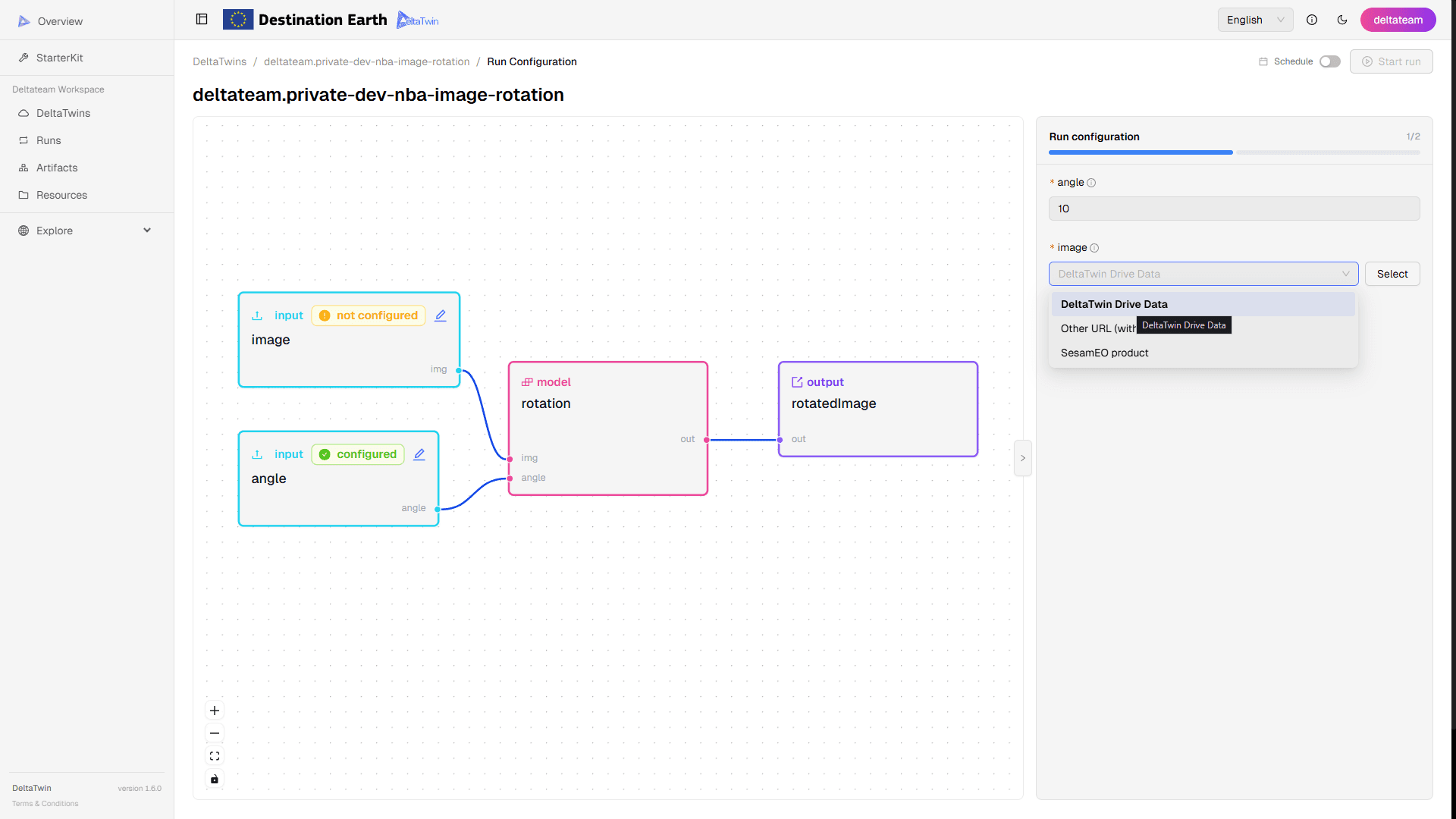

On the Run Configuration page, a URL-type input shows a dropdown with 3 source options :

• DeltaTwin Drive Data
• Other URL (without authentication)
• SesamEO product

Select DeltaTwin Drive Data, then click Select

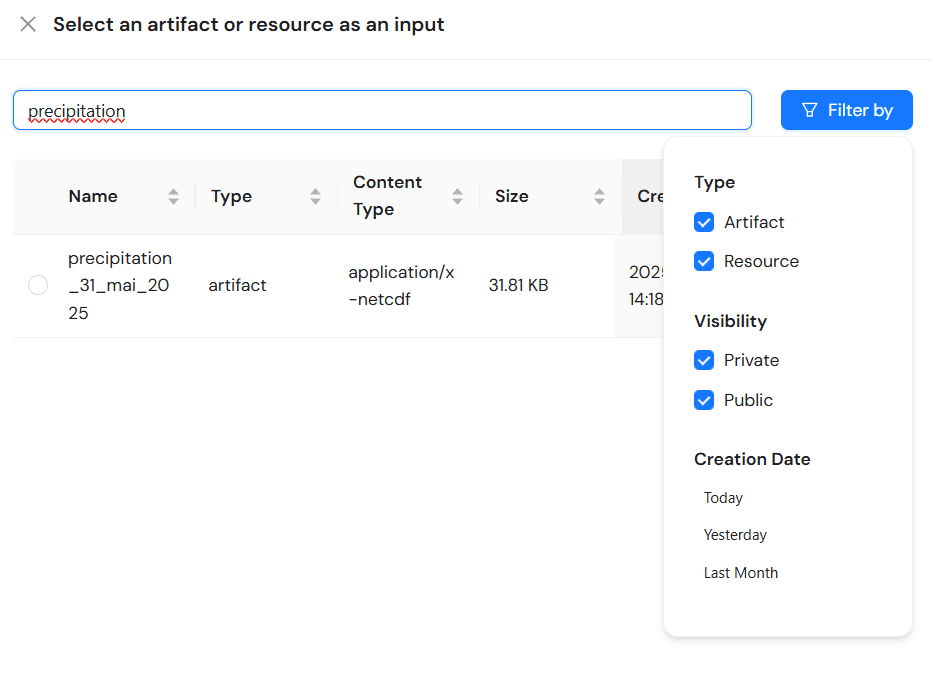

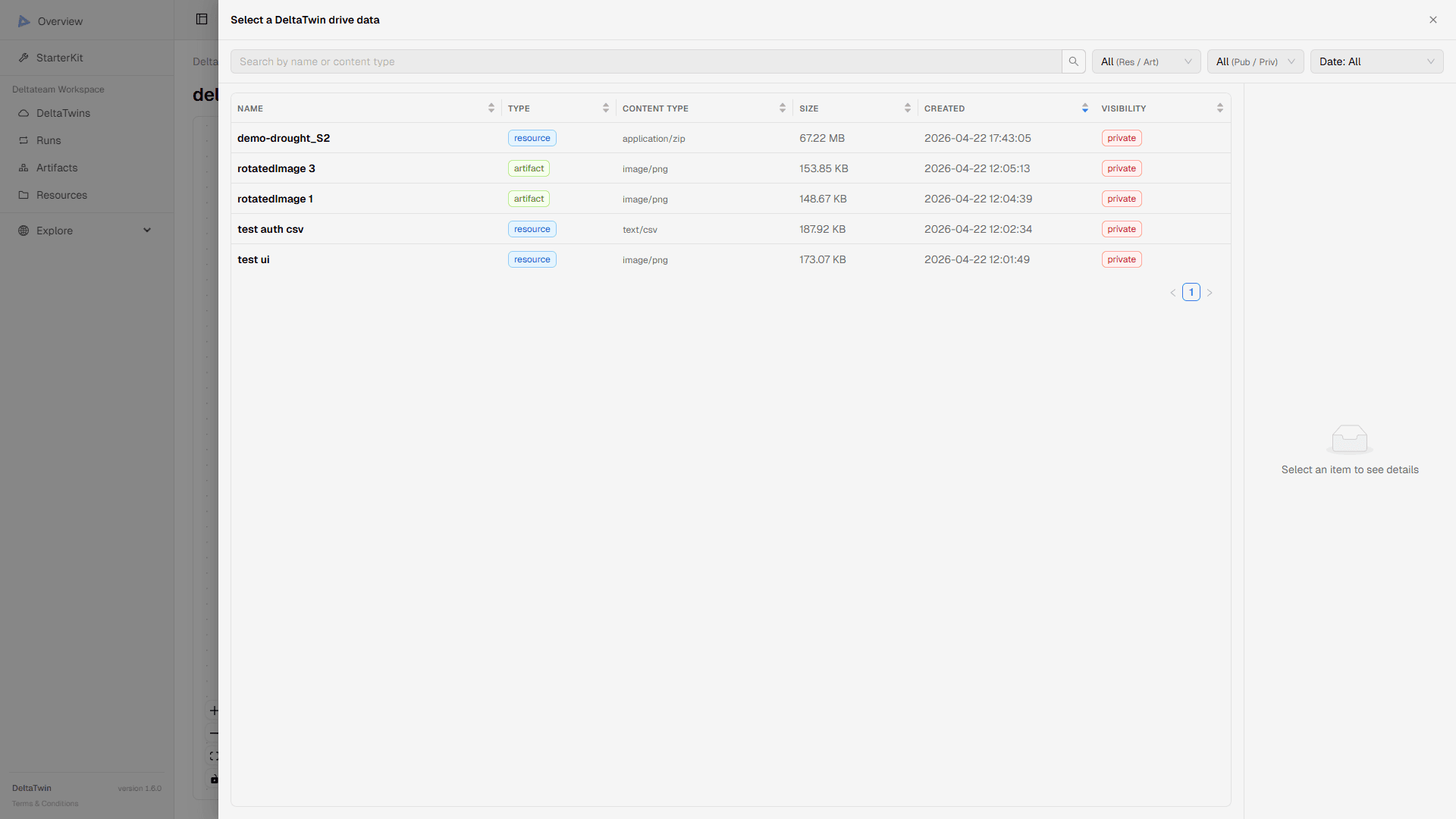

The Select a DeltaTwin drive data modal opens. It lets you pick an artifact or resource from private or public storage. Use the search bar and filters (Resource/Artifact, Public/Private, Date) to narrow the list down to the desired item.

Click a row, then press Add as input

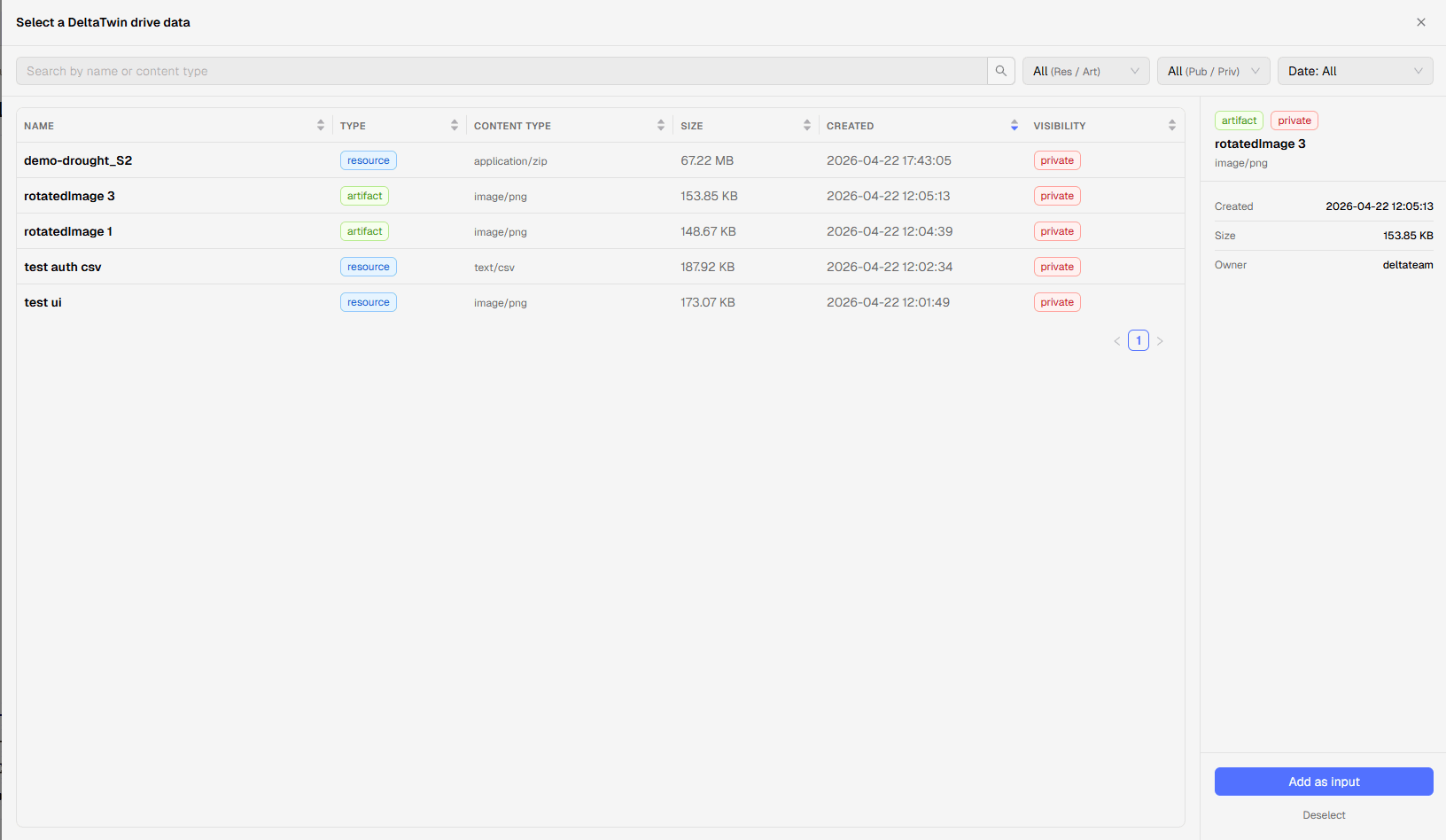

Clicking a row opens its details on the right (type, visibility, size, owner, creation date). Press Add as input to attach it to the run input. Use Deselect to clear the current pick.

Create a JSON file containing your desired input values

In the example below, the input “product” refers to a data file. To reference a Drive Data file, set the field ‘type’ to DriveData and fill in the ‘value’ field with the ID of the resource.

For example, the JSON input file for the band-extractor component will be :

{
  "product": {
      "type": "DriveData",
      "drive_id": "the-id-of-the-resource"
    },
  "bandName": {
      "type": "string",
      "value": "B01"
  }
}

Save JSON file as inputs.json

Run deltatwin run start band-extractor -i inputs.json
